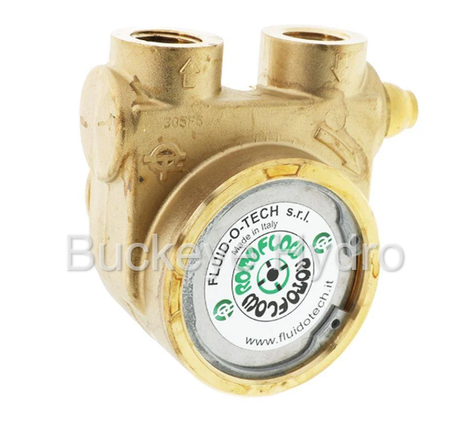

The Fluid-O-Tech® 601 is a robust rotary vane pump crafted for higher flow systems where regulatory compliance (low lead content) is required. Its "lead-free" brass construction makes it well suited for potable water and beverage applications. The design includes: slotted shaft with brass key for secure coupling, band clamp mounting mechanism to facilitate installation and maintenance, and an integrated bypass to protect the system under overpressure or varying flow demand.

With its 225 GPH capacity, it bridges between lower-flow units (401/411) and higher-flow models (such as 1011), making it a versatile middle choice.

Flow rate: 3.75 gallons per minute or 225 gallons per hour

Material: lead-free brass housing, graphite chamber

Port: 1/2" NPT ports

Clamp Mount: 4.2 lbs. (1.9kg)

Max Static Pressure: 290 PSI

Max Operating Temperature: 158°F

Max Speed: 1725 RPM
